    PH516 - PW 6K - 2 WB

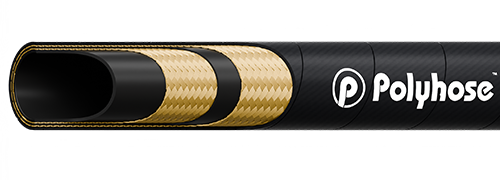

    product img

    Construction

    Inner tube

    Black colour, Synthetic rubber resistant to hot water

    Reinforcement

    Double steel wire braids

    Cover

    Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

    Application

    For pressure washer applications with a maximum pressure of 415 Bar. for cold and hot water up to 155 °C

    Note : Also Available in Blue and Grey colour Covers on request, Not suitable for steam and oil applications
    Item
    Code    		 Dash
    Size    		 DN
    ID
    OD
    OD
    WP
    BP
    BR/r
    W
    inch mm inch mm psi bar psi bar inch mm kg/m
    PH516-04 -04 06 1/4 6.7 0.53 13.6 6000 415 18000 1245 3.0 75 0.360
    PH516-05 -05 08 5/16 8.2 0.60 15.3 6000 415 18000 1245 3.3 85 0.372
    PH516-06 -06 10 3/8 9.8 0.68 17.4 6000 415 18000 1245 3.5 90 0.449

    imgTemperature Range : Continuous: -10°C to +155°C

    *Smooth cover available only upto size 1"
