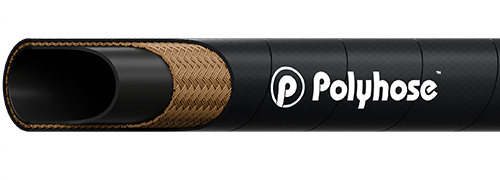

PH542 - FUEL & OIL HOSE
Applicable Standard : SAE J30R7
Construction
Inner tube
Black colour, Nitrile rubber resistant to fuel & oil.
Reinforcement
Textile reinforcement
Cover
Black colour, NBR/PVC rubber resistant to weather, abrasion & ozone. Available in Wrap and Smooth finish*
Application
Low pressure fuel lines 10 bar for use with gasoline, oil, diesel fuel, lubrication oil, or the vapors present in either the fuel system or in the crankcase of internal combustion engines in mobile or stationary applications.
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH542-03 | -03 | 05 | 3/16 | 4.7 | 0.41 | 10.3 | 150 | 10 | 580 | 40 | 2.0 | 50 | 0.101 |
| PH542-04 | -04 | 06 | 1/4 | 6.4 | 0.50 | 12.7 | 150 | 10 | 580 | 40 | 2.6 | 65 | 0.125 |
| PH542-05 | -05 | 08 | 5/16 | 8.0 | 0.56 | 14.3 | 150 | 10 | 580 | 40 | 3.0 | 75 | 0.154 |
| PH542-06 | -06 | 10 | 3/8 | 9.5 | 0.63 | 15.9 | 150 | 10 | 580 | 40 | 3.0 | 75 | 0.176 |
| PH542-08 | -08 | 12 | 1/2 | 12.7 | 0.78 | 19.8 | 150 | 10 | 580 | 40 | 3.9 | 100 | 0.253 |
| PH542-10 | -10 | 16 | 5/8 | 15.9 | 0.94 | 23.8 | 150 | 10 | 580 | 40 | 4.9 | 125 | 0.326 |
| PH542-12 | -12 | 19 | 3/4 | 19.0 | 1.13 | 28.6 | 150 | 10 | 580 | 40 | 5.9 | 150 | 0.481 |
| PH542-16 | -16 | 25 | 1 | 25.4 | 1.37 | 34.9 | 150 | 10 | 580 | 40 | 7.9 | 200 | 0.603 |
Temperature Range : Continuous: -40°C to +125°C
*Smooth cover available only upto size 1"
