PH687 - MULTI PURPOSE HOSE

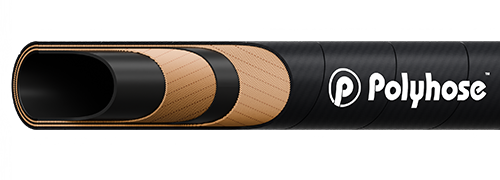

Construction
Inner tube
Black, Nitrile
Reinforcement
Plies of synthetic textile cords
Cover
Black colour EPDM rubber resistant to ozone, weather. Available in Blue, Yellow, Green colour on request
Application
Low pressure multipurpose hose specially designed to deliver fuel, water, air and nitrogen
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | kg/m | ||
| PH687-12 | -12 | 3/4 | 19.0 | 1.14 | 29.0 | 300 | 20 | 900 | 60 | 0.70 |
| PH687-16 | -16 | 1 | 25.4 | 1.42 | 36.0 | 300 | 20 | 900 | 60 | 1.10 |
Temperature Range : -30°C to +100°C
