    PH617 - OIL FUEL DELIVERY HOSE - 20 BAR

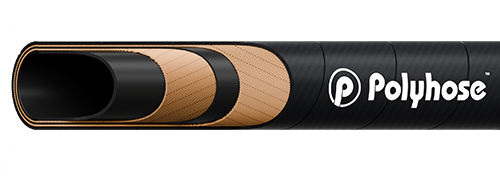

    product img

    Construction

    Inner tube

    Black colour, Synthetic rubber resistant to oil

    Reinforcement

    Plies of synthetic textile cords and two cross and static copper wires

    Cover

    Black colour, Synthetic rubber resistant to oil, ozone and abrasion

    Application

    Mandrel built oil discharge hose for handling grades of gasoline or petroleum oils of aromatic content upto 50% in dispensing station etc, during winter/summer seasons

    Item
    Code    		 Dash
    Size
    ID
    OD
    OD
    WP
    BP
    W
    inch mm inch mm psi bar psi bar kg/m
    PH617-12 -12 3/4 19.0 1.06 27.0 300 20 870 60 0.68
    PH617-16 -16 1 25.0 1.38 35.0 300 20 870 60 0.81
    PH617-20 -20 1.1/4 32.0 1.65 42.0 300 20 870 60 1.22
    PH617-24 -24 1.1/2 38.0 1.89 48.0 300 20 870 60 1.35
    PH617-32 -32 2 51.0 2.44 62.0 300 20 870 60 2.04
    PH617-40 -40 2.1/2 63.0 2.95 75.0 300 20 870 60 2.65
    PH617-48 -48 3 76.0 3.46 88.0 300 20 870 60 3.08
    PH617-56 -56 3.1/2 89.0 4.09 104.0 300 20 870 60 3.60
    PH617-64 -64 4 102.0 4.57 116.0 300 20 870 60 4.87
    PH617-80 -80 5 127.0 5.59 142.0 300 20 870 60 5.60
    PH617-96 -96 6 152.0 6.54 166.0 300 20 870 60 7.00

    imgTemperature Range : Continuous: -20°C to +80°C
