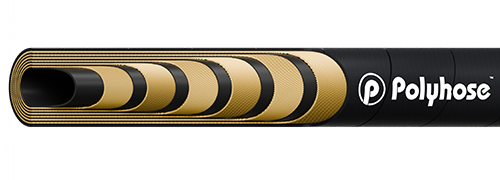

PH178 - R13
Applicable Standard : SAE J517 - 100R13 / EN 856 - R13/ ISO 3862
Construction
Inner tube
Black colour, Synthetic rubber resistant to oil and water
Reinforcement
Four high tensile steel wire spiral (DN19-25), Six high tensile steel wire spiral (DN31-51)
Cover
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone
Application
350 bar super high pressure Hydraulic Lines and hydrostatic transmission lines. Also, suitable for impulse surge lines with more life cycles for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving equipment and machineries / systems
| Item Code |
Dash Size |
DN |
ID
|
RI OD
|
OD
|
WP
|
BP
|
BR/r
|
W
|
||||||
| inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH178-12 | -12 | 19 | 3/4 | 19.2 | 1.14 | 29.0 | 1.26 | 32.1 | 5075 | 350 | 20300 | 1400 | 9.45 | 240 | 1.814 |
| PH178-16 | -16 | 25 | 1 | 25.7 | 1.40 | 35.6 | 1.52 | 38.7 | 5075 | 350 | 20300 | 1400 | 11.81 | 300 | 2.277 |
| PH178-20 | -20 | 31 | 1.1/4 | 32.2 | 1.85 | 47.0 | 1.96 | 49.8 | 5075 | 350 | 20300 | 1400 | 16.54 | 420 | 4.269 |
| PH178-24 | -24 | 38 | 1.1/2 | 38.5 | 2.17 | 55.1 | 2.26 | 57.3 | 5075 | 350 | 20300 | 1400 | 19.69 | 500 | 5.747 |
| PH178-32 | -32 | 51 | 2 | 51.4 | 2.67 | 67.7 | 2.80 | 71.1 | 5075 | 350 | 20300 | 1400 | 25.20 | 640 | 7.852 |
Temperature Range : Continuous: -40°C to +121°C
Impulse Cycles : 500,000 cycles
