PH260 - 2SC ABRAZON - X MSHA
Applicable Standard : EN 857 - 2SC / SAE 100R16 / ISO 11237

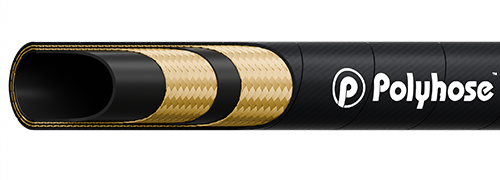

Construction
Inner tube
Black Color, Synthetic rubber resistant to oil and water
Reinforcement
Double steel wire braids
Cover
Abrazon-X Black, Exceptionally abrasion, oil, ozone resistant synthetic rubber sheathed with layer of UHMW-PE foil.
Application
High Pressure Hydraulic Lines 125 to 400 bar requiring compact outer dia and high flexibility for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Earthmoving & Material handling equipment and machineries/systems
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH260-04 | -04 | 06 | 1/4 | 6.7 | 0.52 | 13.2 | 5800 | 400 | 23200 | 1600 | 2.0 | 50 | 0.323 |
| PH260-05 | -05 | 08 | 5/16 | 8.2 | 0.59 | 14.9 | 5075 | 350 | 20300 | 1400 | 2.2 | 55 | 0.366 |
| PH260-06 | -06 | 10 | 3/8 | 9.8 | 0.67 | 17.1 | 4785 | 330 | 19140 | 1320 | 2.6 | 65 | 0.466 |
| PH260-08 | -08 | 12 | 1/2 | 13.1 | 0.80 | 20.4 | 3990 | 275 | 15950 | 1100 | 3.5 | 90 | 0.624 |
| PH260-10 | -10 | 16 | 5/8 | 16.3 | 0.93 | 23.5 | 3625 | 250 | 14500 | 1000 | 3.9 | 100 | 0.736 |
| PH260-12 | -12 | 19 | 3/4 | 19.3 | 1.10 | 28 | 3120 | 215 | 12470 | 860 | 4.7 | 120 | 0.932 |
| PH260-16 | -16 | 25 | 1 | 25.9 | 1.41 | 35.7 | 2395 | 165 | 9570 | 660 | 5.9 | 150 | 1.324 |
| PH260-20 | -20 | 31 | 1.1/4 | 32.2 | 1.73 | 43.9 | 1815 | 125 | 7250 | 500 | 8.3 | 210 | 1.750 |
| PH260-24 | -24 | 38 | 1.1/2 | 38.7 | 1.89 | 48.0 | 1450 | 100 | 5800 | 400 | 9.8 | 250 | 1.760 |
| PH260-32 | -32 | 51 | 2 | 51.3 | 2.43 | 61.6 | 1305 | 50 | 5220 | 360 | 11.8 | 300 | 2.300 |
Temperature Range : Continuous: -40°C to +100°C
Intermittent : +120°C
Impulse Cycles : 200,000; Tested upto 400,000 cycles,upto 1"I.D
